產品名稱

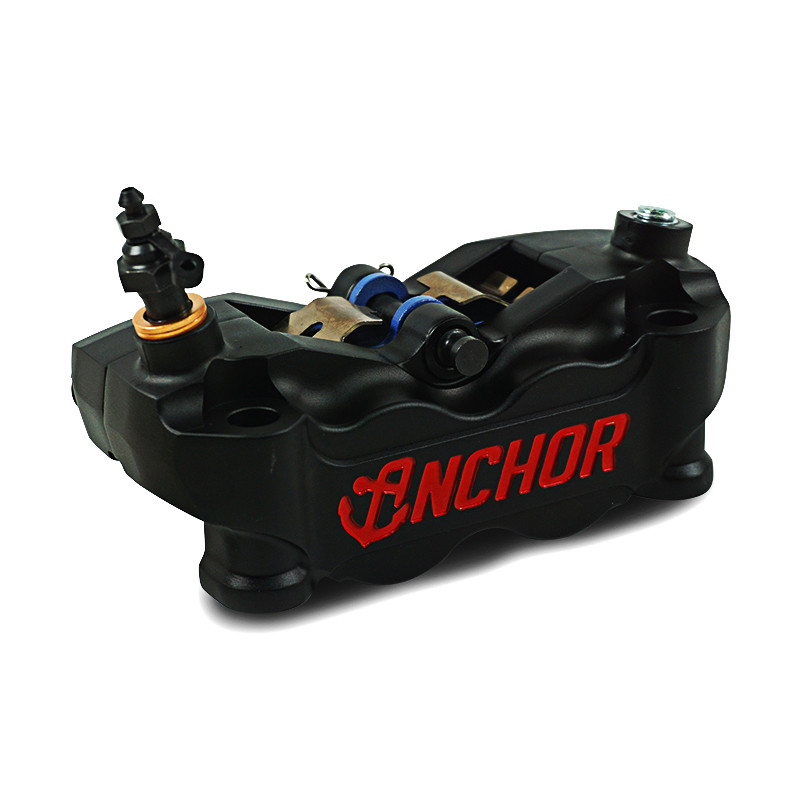

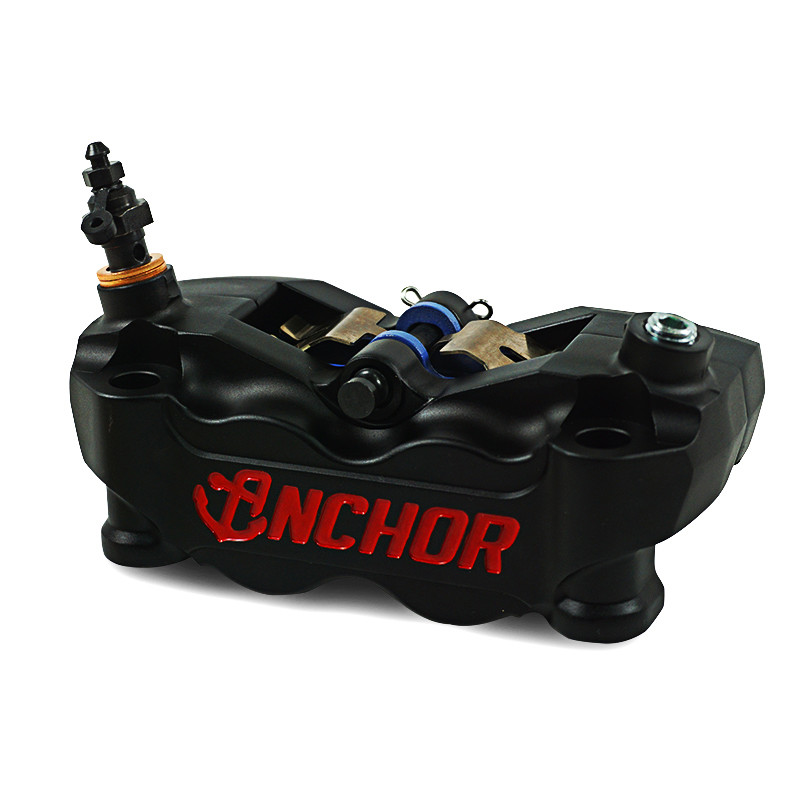

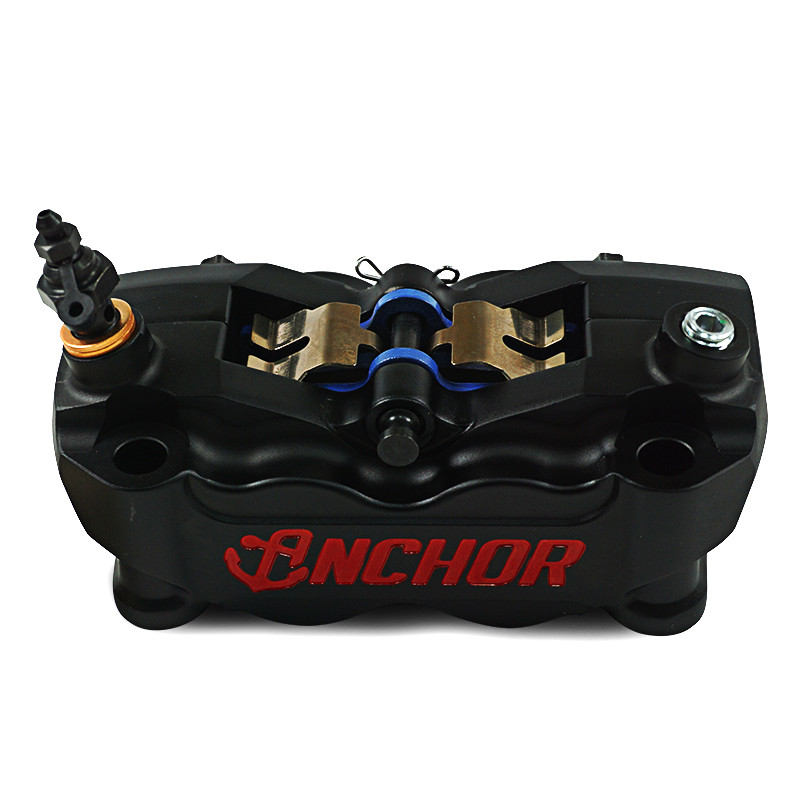

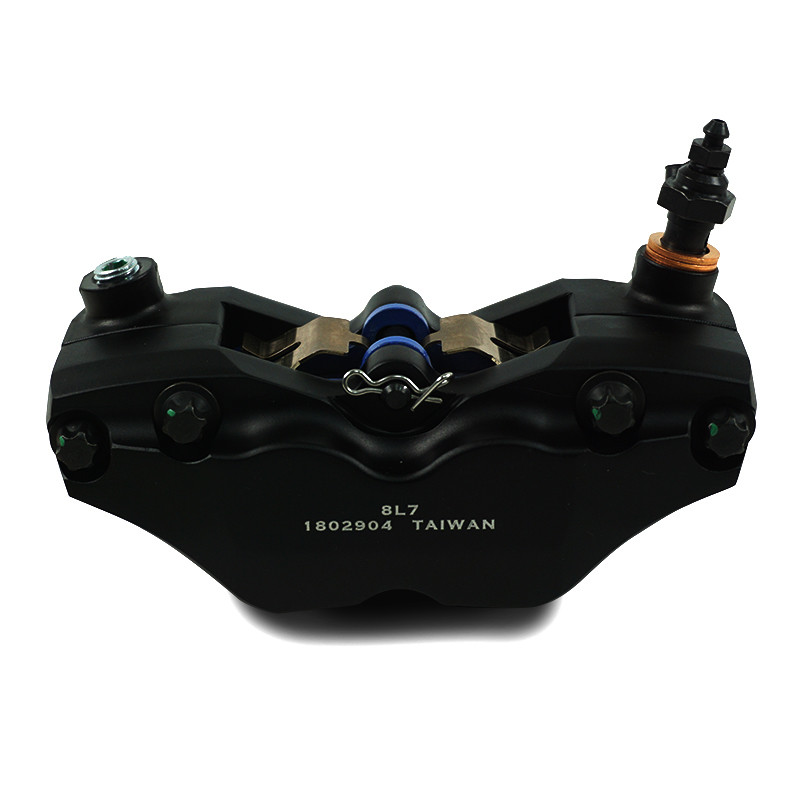

Caliper ANC9
產品型號
ANC9
材質
Caliper Material:Aluminum Alloy Forged
規格
簡介
Technical Specification:

●Piston size:Ø30.23mm*4 ; Ø27mm*4
●Length:17.5mm
●Disc Diameter/Thickness:Ø320(MAX)mm/5(MAX)mm
●Pad Family:69.7mmx51mm xThickness8.5mm
●Pad Depth:34mm
